gravity roller conveyors

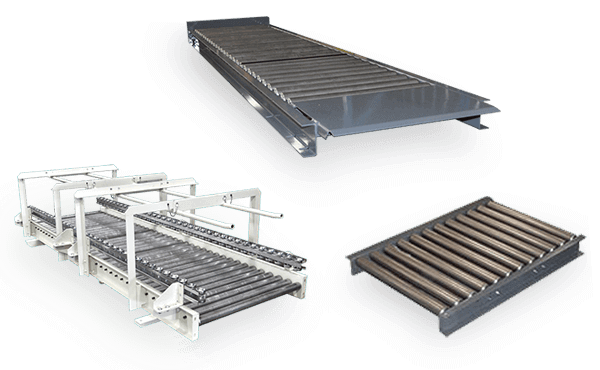

Gravity Roller Conveyors

How does a gravity roller conveyor work?

A gravity conveyor moves the load without utilizing motor power sources, usually down an incline or through a person pushing the load along flat conveyor rollers. Gravity roller conveyors transport products or work in process from one work area to another.  Titan gravity conveyors are a low-cost and ergonomic way to move materials.

Gravity Roller Conveyor Options:

There are 5 different models to choose from, ranging in capacities from 95 pounds to 3,000 pounds per roller. Titan offers numerous accessories such as curves, spurs, pop up stops, supports, ceiling hanger brackets, side rails, and optional rollers such as galvanized, stainless steel or plastic coated.  The Titan gravity roller conveyor is a valuable tool when designing a material handling solution for your application.

Call Titan Industries toll free at 800-558-3616 for more information on individual roller conveyors model specifications.

View our entire line of conveyors.

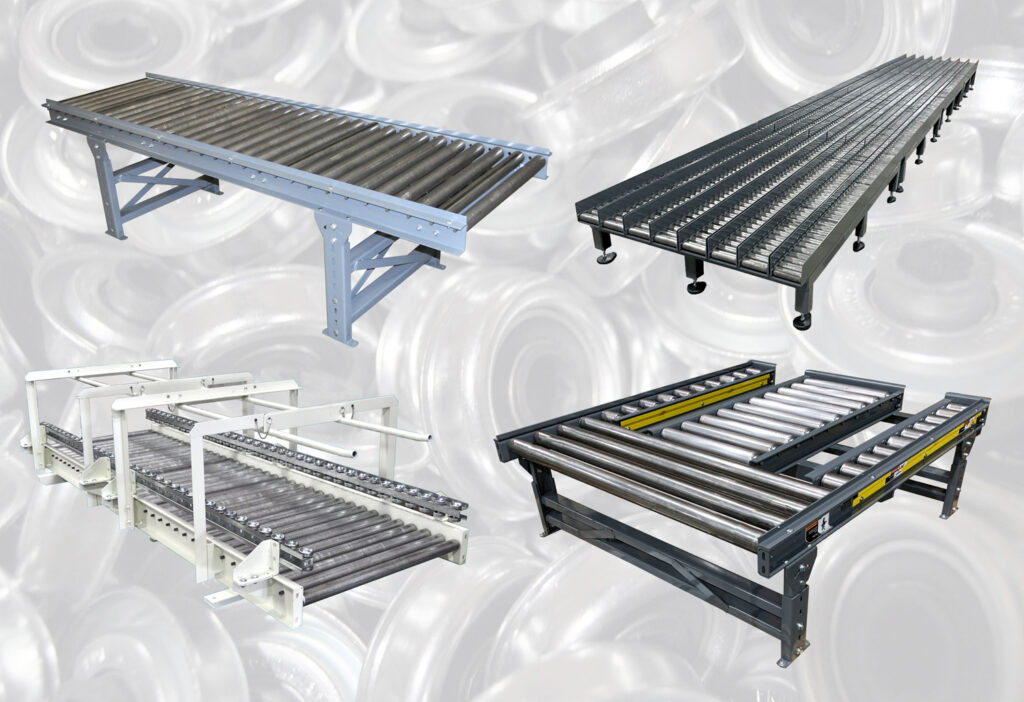

Available Gravity Roller Conveyors and Systems

Gravity Roller Conveyors Between Frame Rollers Roller Centers Frame
Model 413 Gravity Roller  10″ to 22″ 1-3/8″ Dia. x 18 gauge 1 1/2″ Formed 12 gauge
Model 419 Gravity Roller  9″ to 40″ 1.9″ Dia. x 16 Gauge 3″ Formed 10 gauge
Model 425 Gravity Roller  9″ to 72″ 2-1/2″ Dia. x 11 Gauge 3″ Formed 7 gauge
Model 426 Gravity Roller  9″ to 96″ 2-5/8″ Dia. x 7 Gauge 3″ Formed 7 gauge
Model 435 Gravity Roller  9″ to 120″ 3-1/2″ Dia. x .300 wall pipe 4″ 6″ @ 8.2 lb structural channel
Ball Transfer Table Conveyor  Formed 12 gauge
