Titan 4″ Pitch Hinged Steel Belting

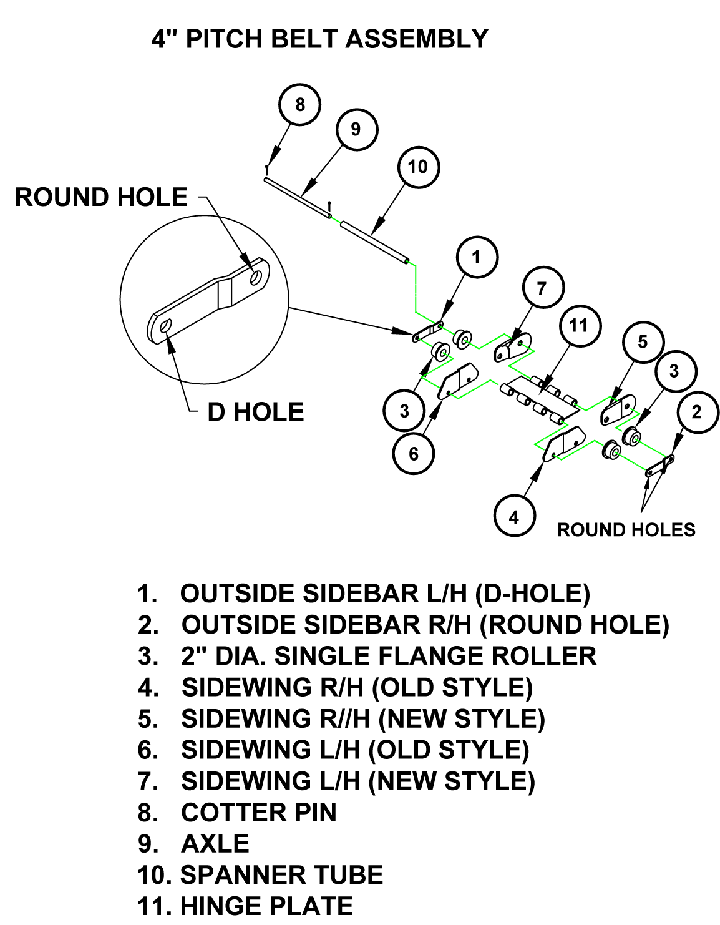

Diagram of 4 inch pitch parts

The Titan 4” Pitch Hinged Steel Belt contains the 2” diameter flanged roller as a standard feature – without additional cost. The flanged rollers aid belt tracking. When Titan belts are used to replace those of other manufacturers, Titan can supply those belts with regular flat face rollers if needed. If extra impact absorption is needed for rough loading conditions, Titan will add reinforcement bars to the 10 gauge apron.

Replacement Parts

"*" indicates required fields

First Name*

Last Name*

Company*

Address*

Street Address City Region ZIP Country

Phone*

Ext

Email*

Titan Conveyor Serial Number

Enter Quantities

Outside Sidebar (D Hole)

Outside Sidebar (Round Hole)

2" Diameter Single Flange Roller

Sidewing - Right Hand - Old Style

Sidewing - Right Hand - New Style, Radius

Sidewing - Left Hand - Old Style

Sidewing - Left Hand - New Style, Radius

Cotter Pin

Thru Shaft

Spanner Tube

Hinge Plate

Hinge Plate Type

Cut Hinge Plate (Less Than 12") Specify Length and Type

Comments

This field is for validation purposes and should be left unchanged.

19569

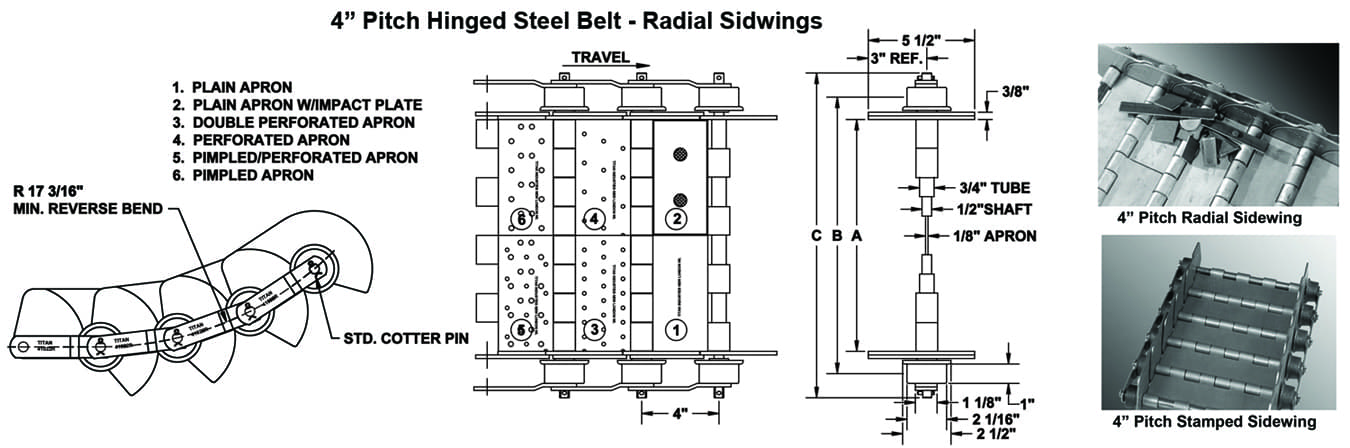

diagram of 4 inch pitch belt assembly
