Titan 6″ Pitch Hinged Steel Belting

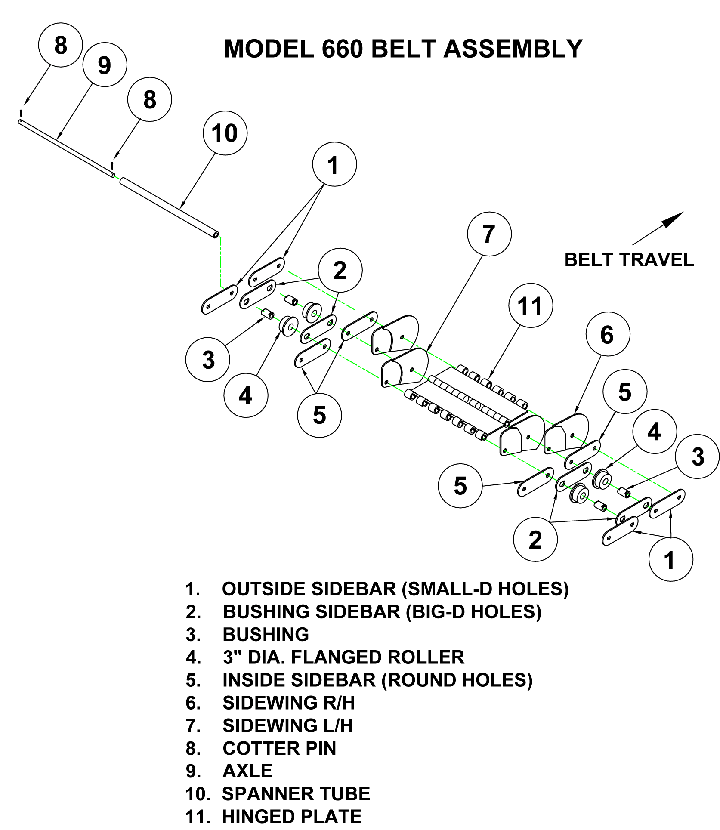

Diagram of 6 inch pitch parts

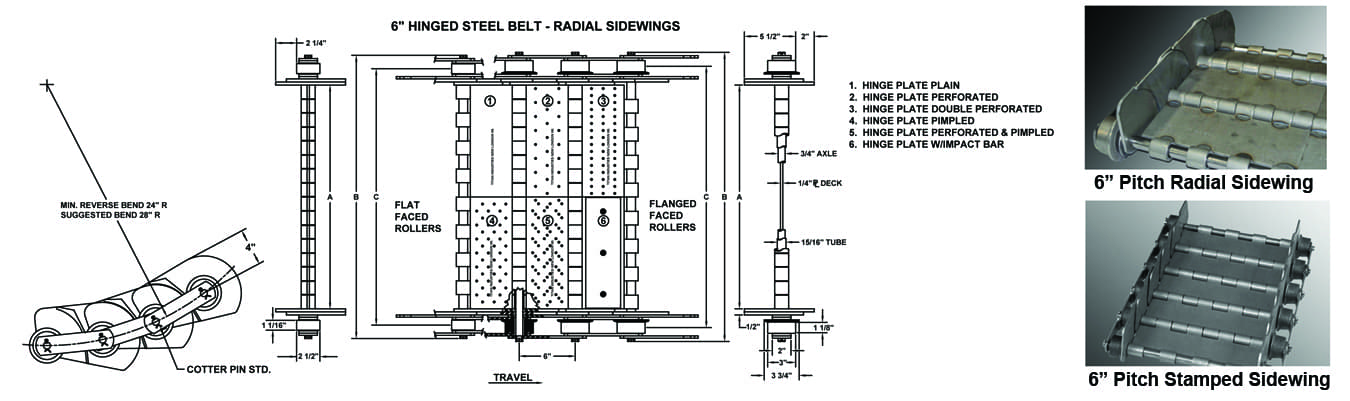

A genuine heavy-duty belt equal to the demands of sophisticated, automatic scrap handling systems. Belts feature full 1/4″ thick apron and sidewings, a 15/16″ tube with a 3/4″ through pin, and die formed hinges which eliminate the usual weld bead. Belts also have 3″ diameter single flange cast iron rollers with hardened bushings. Titan will also supply them with flat face roller if desired. Titan 6″ pitch belts are available in dimpled, plain or perforated styles.

Replacement Parts

"*" indicates required fields

First Name*

Last Name*

Company*

Address*

Street Address City State/Province ZIP Country

Phone*

Phone Number

Ext

Email*

Titan Conveyor Serial Number

Enter Quantities

Outside Sidebar (D Hole)

Bushing Sidebar (Big D Hole)

3" Diameter Single Flange Roller

Roller Bushing

Inside Sidebar (Round Hole)

Sidewing - Right Hand

Sidewing - Left Hand

Cotter Pin

Thru Shaft

Spanner Tube

Hinge Plate

Hinge Plate Type

Cut Hinge Plate (Less Than 12") Specify Length and Type
