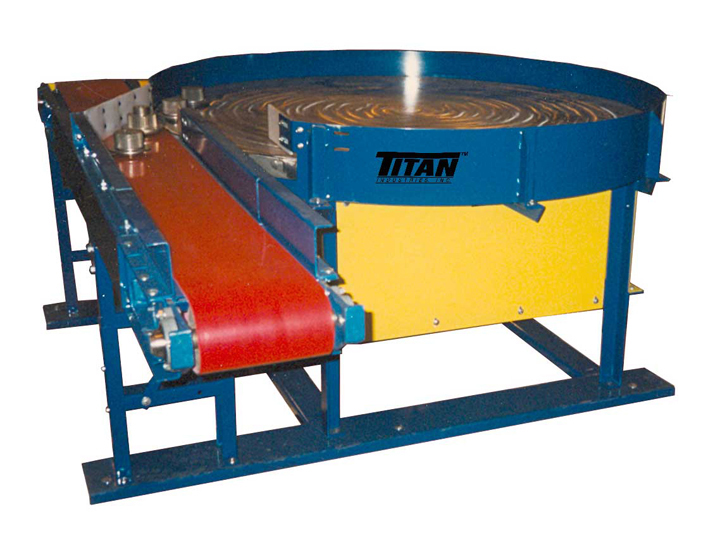

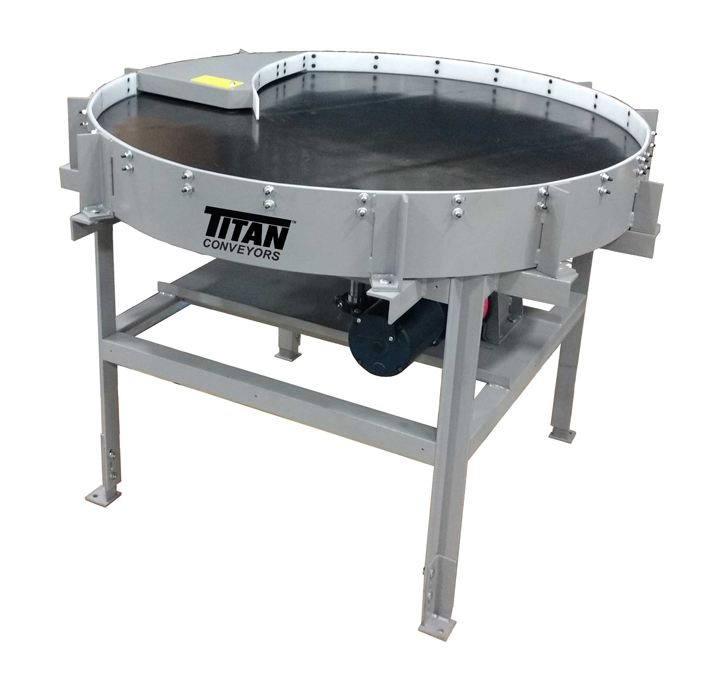

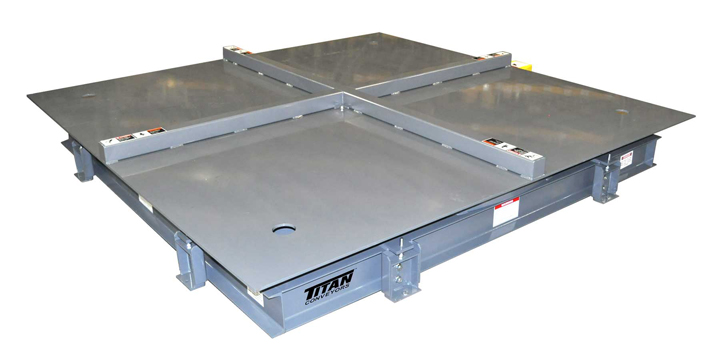

Powered Turntable Conveyors
Model Description:

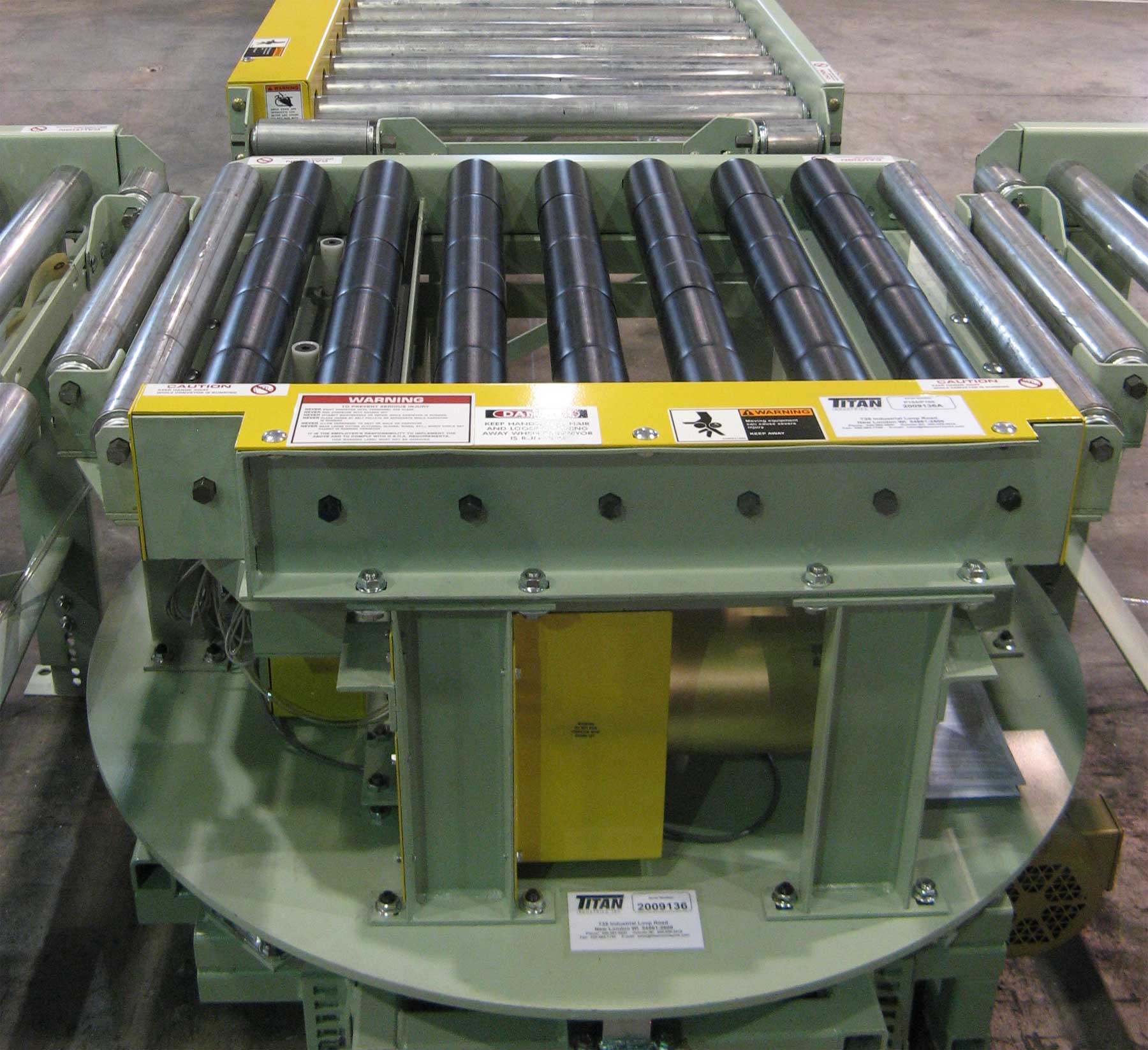

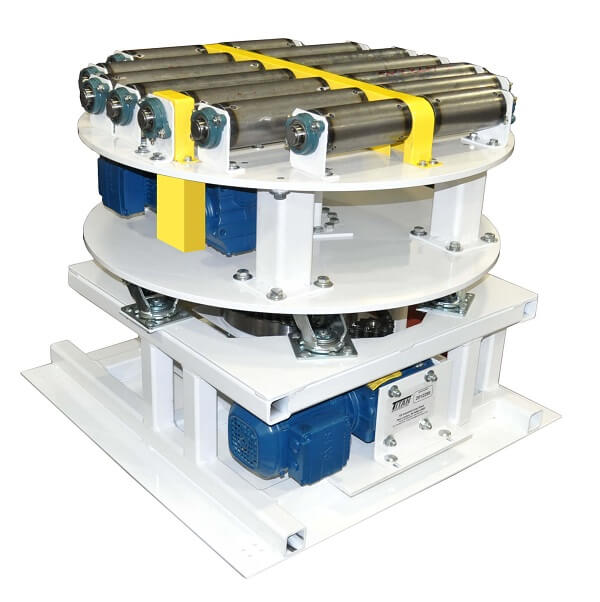

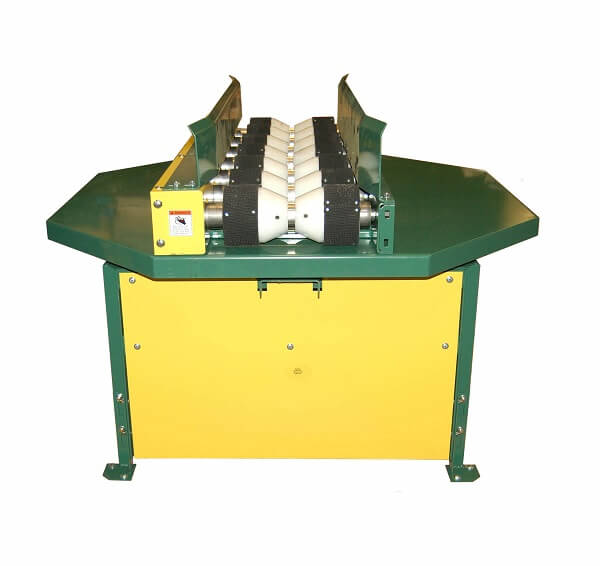

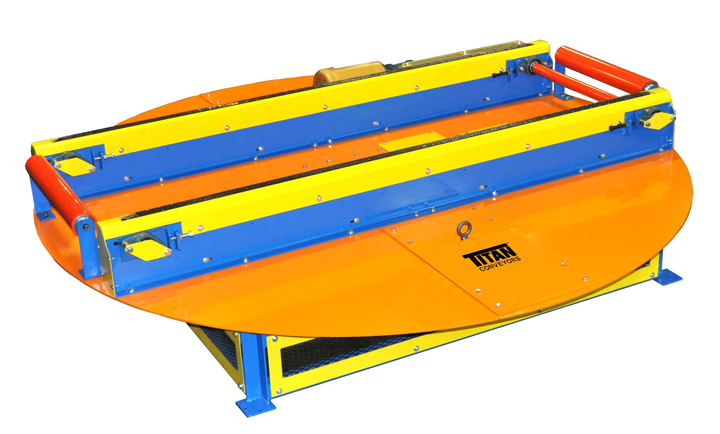

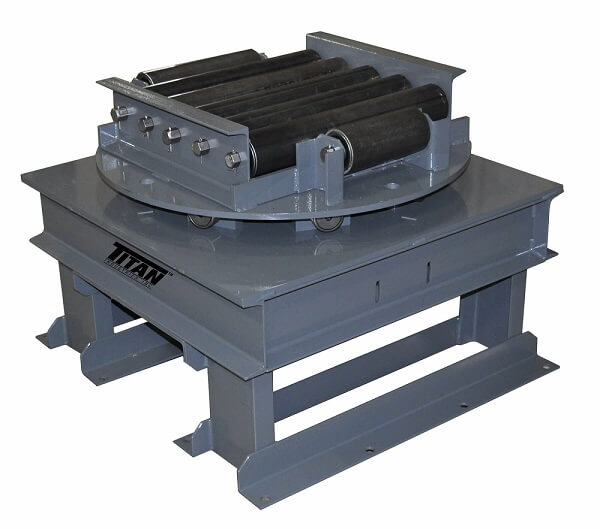

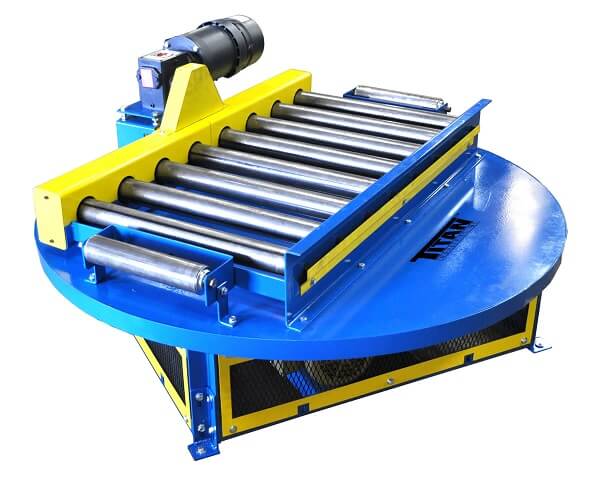

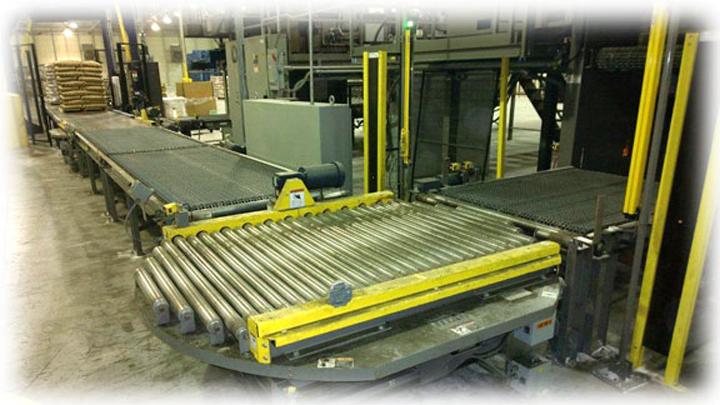

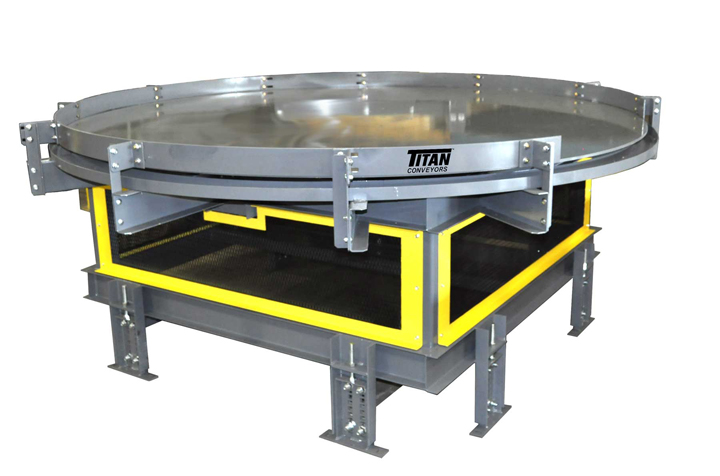

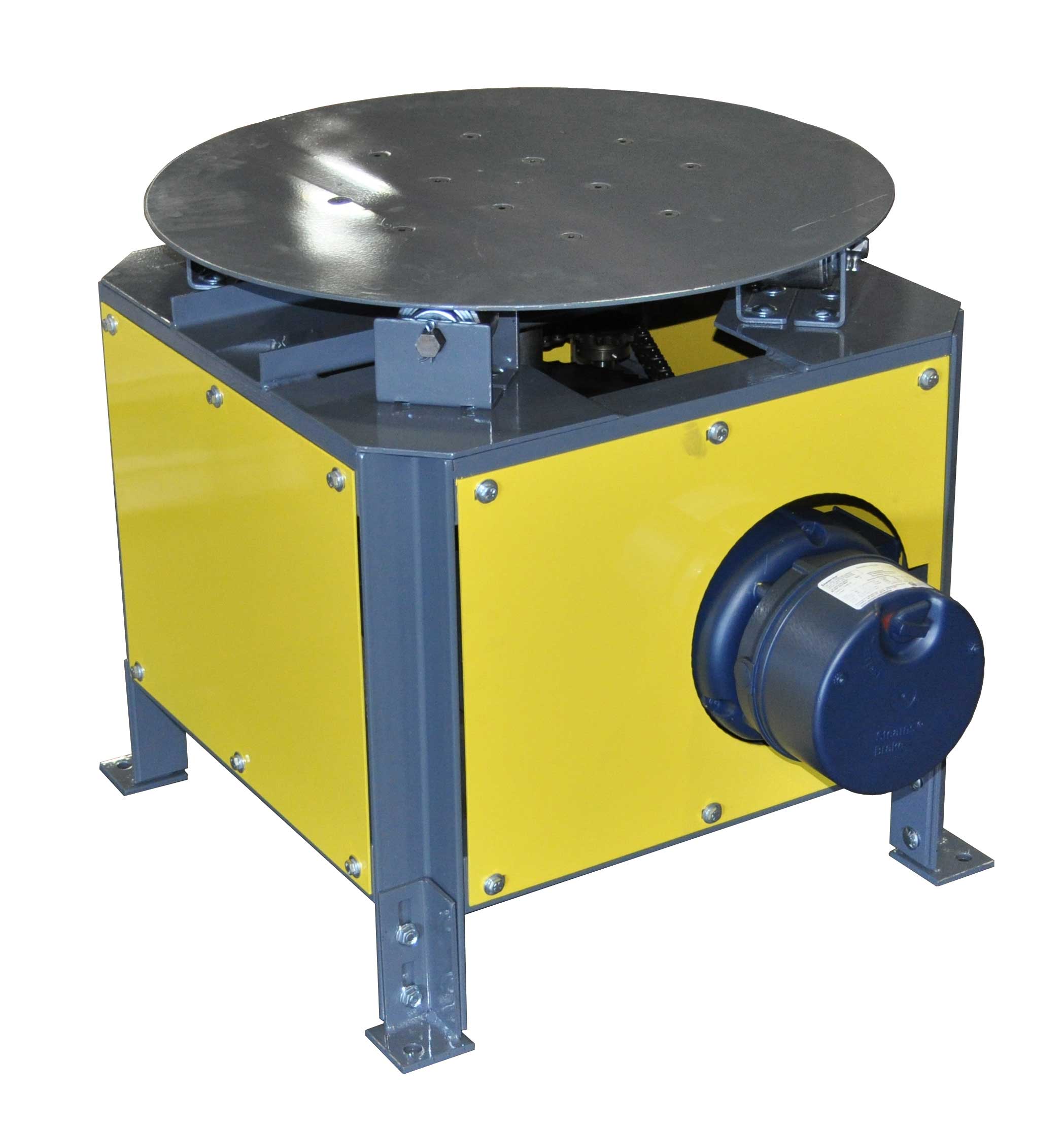

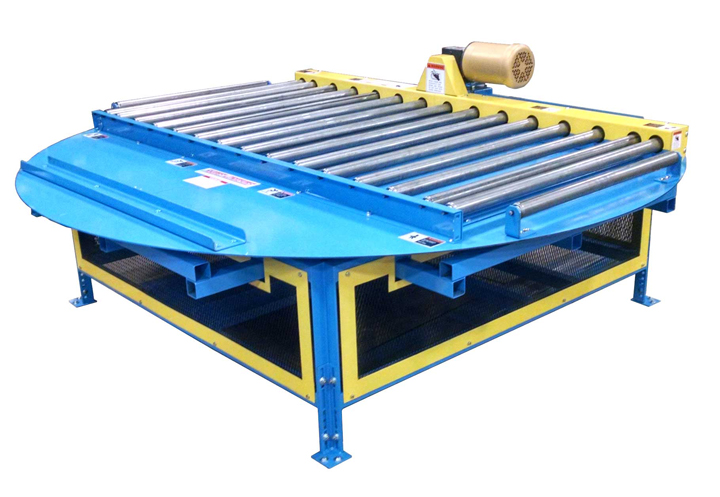

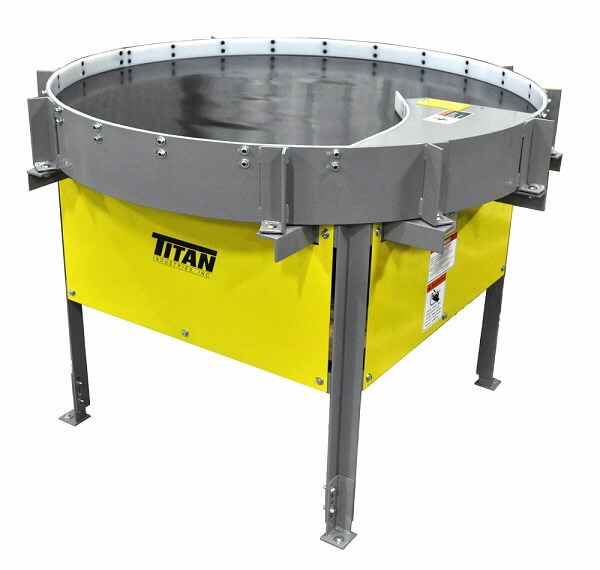

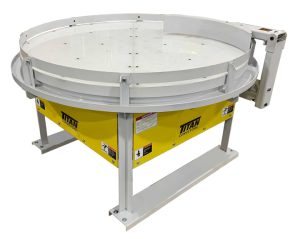

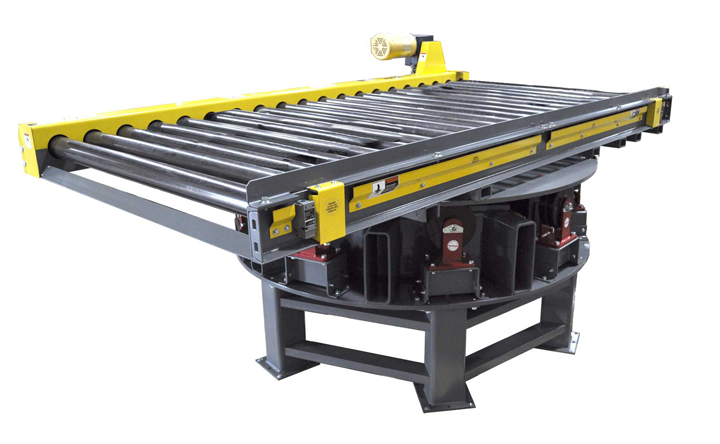

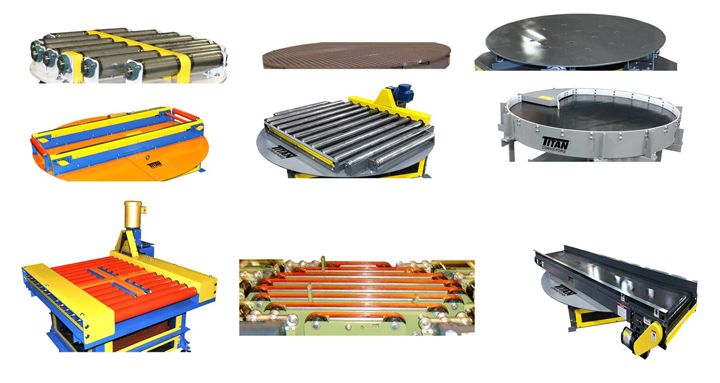

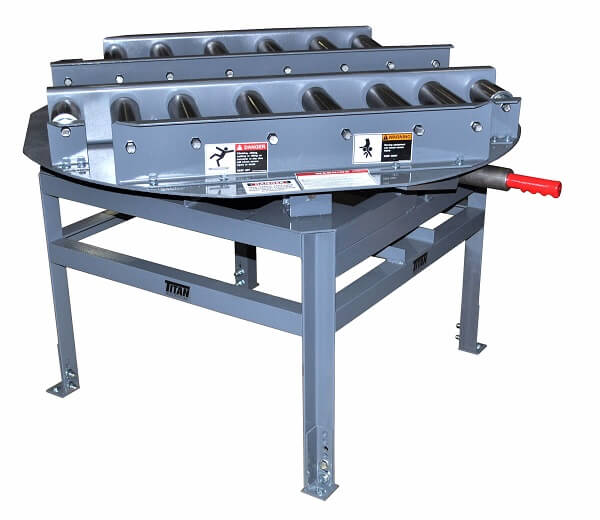

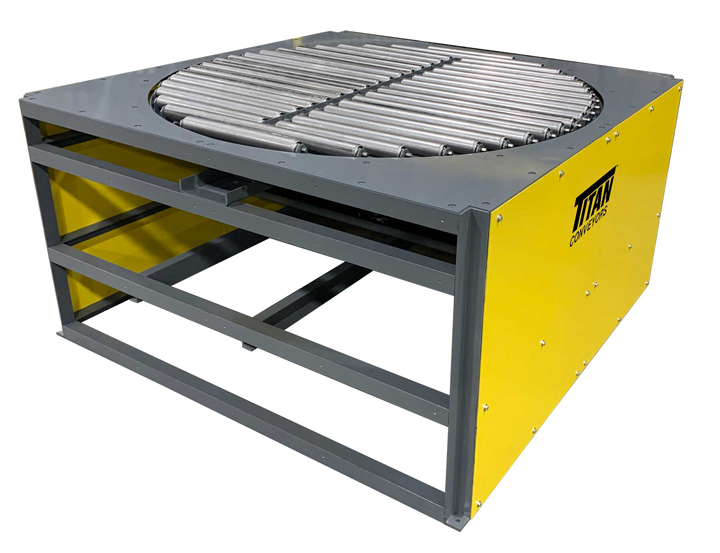

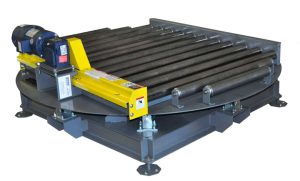

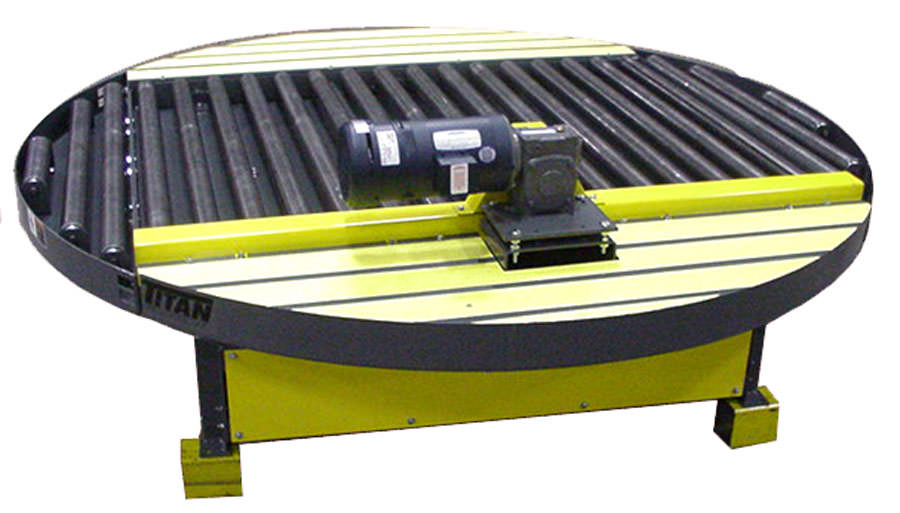

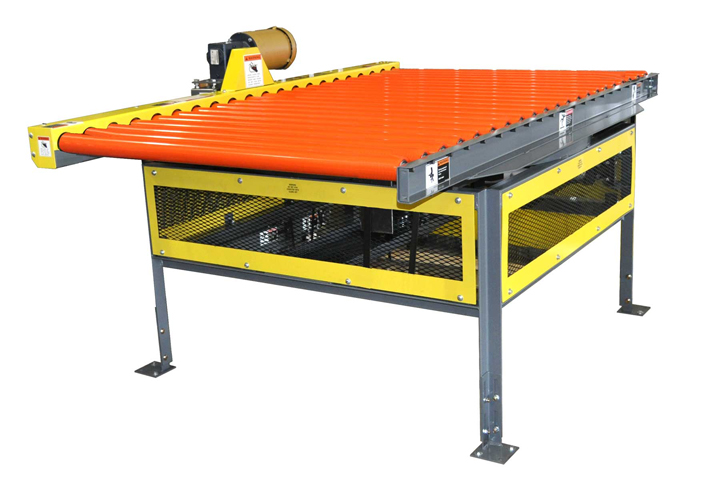

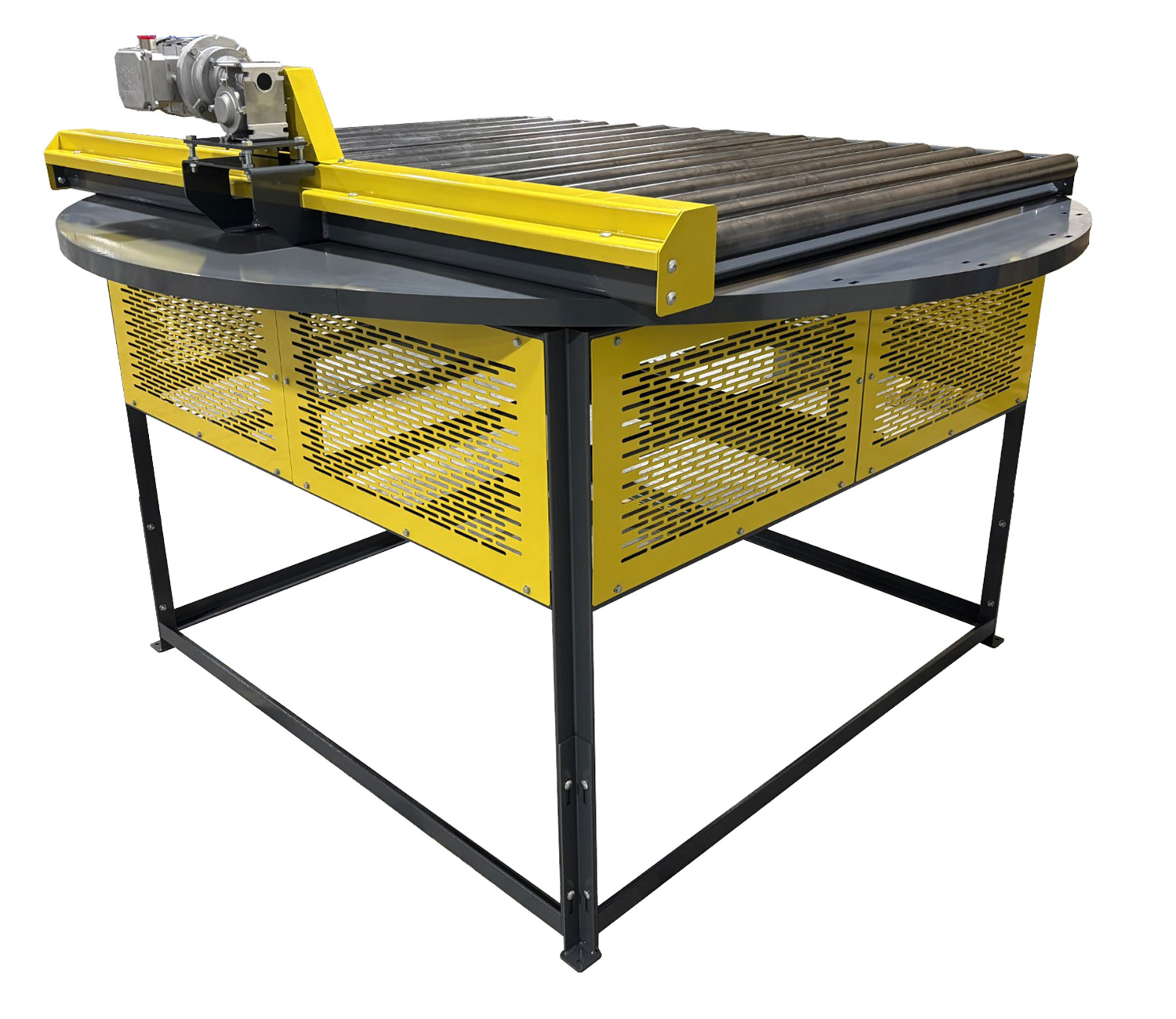

When your plant layout requires a directional change in the smallest possible space of your conveyor system, you should consider using a Titan Powered Turntable. The turntable conveyor can be used for product sortation, accumulation as well as directional changes. The Titan Turntable is available in sizes ranging from 2′ diameter to 12′ diameter. The standard table top is 7 gauge construction with angle iron supports. The top is driven by either chain and sprockets or air operated cylinder. The unit is furnished with expanded metal guards on all four sides. The unit can be supplied with chain and sprocket drive, air operated for 90 degrees rotation or no drive for manual indexing. Tops can be fitted with gravity roller or chain driven live roller conveyor to suit your application.
Powered Turntable Conveyor Specifications:
Bearings: Grease Sealed
Belt: None
Drive: 1/2 H.P. 230/460/3/60
Frame: 7 Gauge Top With Angle Iron Base
Paint: One Coat Industrial Enamel
Speed: 2.5 R.P.M At Outside RIM
Sprockets: Sized To Suit
Supports: Fixed for 30″ Elevation
